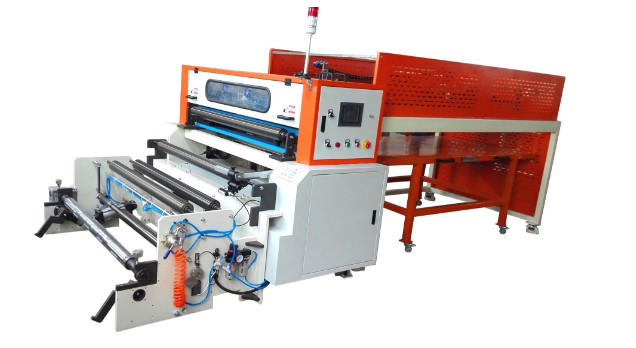

Model:YHC-1500A
The machine is composed by touch screen, PLC, servo-motor, pneumatic spare parts, and digital sensors. The machine is easy to operate and stable working, it plays an important roll in the solar energy industry.
specification
voltage | 380V 50HZ |
power | 5.0KW |
air pressure | 0.6-0.8MP |
machine weight | 1500kg |
dimension | 5000*2200*1500(L*W*H) |
auto cutting size：50mm-2500mm
effective cutting width：1450mm
material roll diameter：diameter less than1000mm,weight less than1000KG。
cutting precision：TPT cutting length error±1mm,diagonal error±1mm。
After cutting, there is no blur in the edge, no crumble and deformation
7-10 pcs, including the punching time
Material loading: use electrical loading, one worker can do. Each loading time less than 5 minutes
winding: unwinding is synchronous with the driving, which can decrease the deformation of the EVA
Unwinding: per the material type, the system control the unwinding method automatically, cut the TPT and pack it.
Punch: punch adopts the big cylinder control mold, you can choice different shape knife per the production request, it’s easy to change the install the knife. After short time training, the worker can do it quickly.
Cross cutting system: driven by servo motor, up and down cutting, the knife made by high speed steel, long working life and easy to use.
